Automatic Leak Test Apparatus
(Without Vacuum Desiccator)

Model : µLTCal10 | Make : ANALAB | HSN Code : 90318000

Supplied with Vacuum Pump (Inbuilt with System), Power Cord, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.

Technical Specifications:

• Vacuum Controller : Microcontroller Based
• Maximum Vacuum Level : Greater than 500 mmHg
• Vacuum Stability :
  ● Set Value Below 400 mmHg : ±10 mmHg within 30 seconds
  ● Set Value Above 400 mmHg : ±5 mmHg within 30 seconds
• Vacuum Hold Time : Variable from 1 sec. to 99 min
• Vacuum Release : Manual
• Vacuum Measurement : Digital
• Vacuum Measurement Units : mmHg
• Number of Sample : 1 to 99
• Material of Construction : Stainless Steel
• Display : 16 x 2 Line Alphanumeric Backlit LCD
• Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS

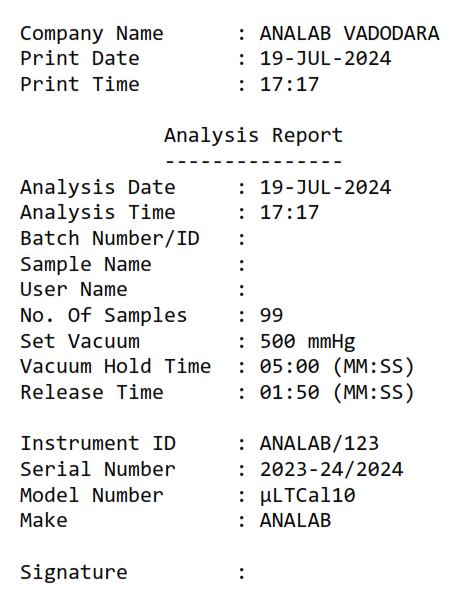

• Analysis Data Storage : More than 500 analysis data which can be viewed & Print, company name, analysis date & time, record number, *Username, *Sample Name, *Bath Number/ID, Number of Sample, Set Vacuum, Vacuum Hold Time, Vacuum Calibration Date, instrument serial number, Instrument Make & Model & *Signature etc. Secondly, analysis data can be print online without saving analysis data in Instrument.
  (*: Not possible to enter data by instrument keypad but it will be handwritten)
• Searching of data : With record number by scrolling.
• Report Formation : As per Non-GLP Compliance
• Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
• Printer : 40 / 80 Column Dot Matrix Printer (Printer must procure optionally)
• Power Supply : 230VAC ± 10%, 50Hz
