Friability Test Apparatus - Double Drum

Model : µFTCal10 | Make : ANALAB | HSN Code : 90318000

Supplied with Roche Drum – 02 Nos., Drum Holding Knob with rubber bush, Removable Tablet Collecting SS Tray – 02 Nos., Acrylic Tablet Collecting Holder for SS Tray – 02 Nos., Power Cord, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.

Technical Specifications

• Speed : Fix 25 RPM
• Timer : Variable from 1 sec. to 9 hrs. 59 min 59 sec.
• Counter : 1 to 9999 revolutions
• No. of Drums : Two
• Pharmacopeia Complies : As per USP, IP, Ph. Eur.
• Tablet Discharge : Automatic in the Sample tray from drum after completion of analysis.
• 10º Tilt : Manual with tilting legs
• Calibration : RPM and Count (Automatic)

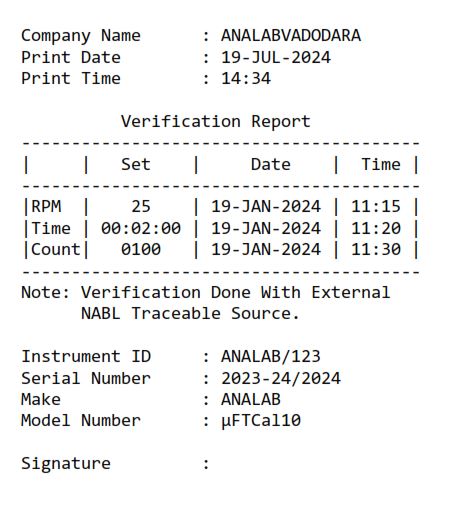

• Verification : RPM, Count and Time
• Calculation of result : Friability in %
• Power failure detection : Un-interrupted tablet testing after power resume.
• Display : 16 x 2 Line Alphanumeric Backlit LCD
• Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS

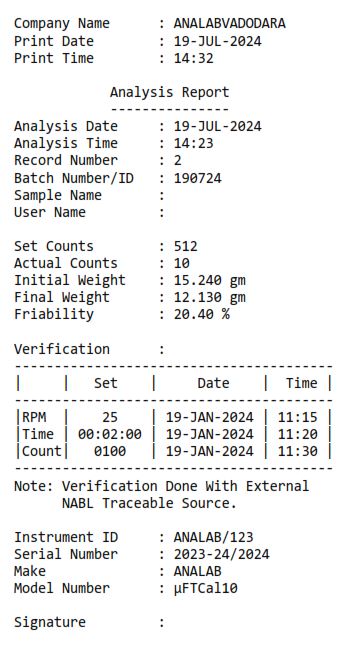

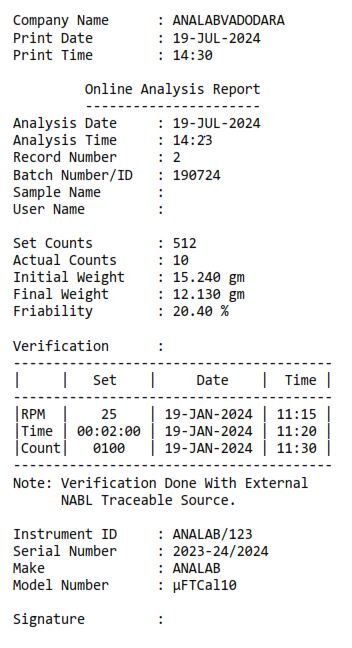

• Analysis Data Storage : More than 500 analysis data which can be viewed & Print, company name, analysis date & time, record number, *Username, *Sample Name, *Bath Number/ID, Set Time / Count, Actual Time / Count, Initial Weight, Final Weight, % Friability, instrument serial number, Instrument Make & Model & *Signature etc. Secondly, analysis data can be print online without saving analysis data in Instrument.
  (*: Not possible to enter data by instrument keypad but it will be handwritten)
• Searching of data : With record number by scrolling.
• Report Formation : As per Non-GLP Compliance
• Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
• Printer : 40 / 80 Column Dot Matrix Printer (Printer must procure optionally)
• Power Supply : 230VAC ± 10%, 50 Hz
