Microcontroller Based Flame Photometer

Model : µFlameCal50 | Make : ANALAB | HSN Code : 90275010

Supplied with Two Filters (Na and K), Air Supply Unit, Atomizer Tube, Sample Beaker (06 Nos.), Gas Lighter, LPG Tube, Power Cord, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.

Technical Specification

• Element Range : Na, K, & Li : 1-100 ppm, Ca : 15-100 ppm, Ba : 50-1000 ppm
• Sensitivity : Na : 0.5 ppm, K : 0.5 ppm, Li : 0.5 ppm, Ca : 15 ppm, Ba : 50 ppm
• Filter Selection : Automatic by soft touch key
• Resolution : 0.1 ppm
• Detector : Silicon Photodiode
• Linearity : Better than 2%
• Unit of Measurement : ppm
• Calculation of Concentration : In built with system & can be measure by Sample Weight & Dilution Factor.
• Reproducibility : <1% Coefficient of Variation (CV) for 20 consecutive samples using 10 ppm Na set as maximum standard & Barium 3% Coefficient of Variation (CV) for 20 consecutive samples of Concentrations between 50 to 199 ppm.
• Stability : <2% drift over 5min when continuously aspirating 10 ppm sample Specificity Interference from Na/K and Li.
• Curve Fitting Accuracy : <1% error when 3 ppm Na/K and 5 ppm Li are set as maximum standards and can measure calculation of curve coefficient automatically.
• Correlation Factor : Possible with System
• Quick Calibration Facility : With Highest standard
• Calibration : Upto 05 standards per Elements with Curve Fitting Software in-built with Instrument. (Automatic calculation of curve coefficient)
• Measurement of Sample : Multi elements in single aspiration OR one by one.
• Ignition System : Auto Igniter
• Flame Type : LPG & Dry Oil Free Air
• Auto LPG Shut-off at Power Off : Safety feature in case of sudden power failure.
• Auto Flame ON / OFF Detection : Audio and Visual Alarm
• Gas Control : Adjustable with Regulator
• Atomizer : Axial Flow Type
• Air Flow Monitoring Facility : 4 – 6 ml/min., In-built with Instrument
• Error Messages : “LPG is Off”, “Home Detection”, “Memory Full”, “Flame is Off”, “Value Out of Limit”, “Do Warm-up”, “In Correct Standard” & “Enter in Range”.
• Display : 20 x 4 Line Alphanumeric LCD with Backlit
• Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS
• Air Supply Unit (Separate Unit) : Consist of Air Compressor, Pressure Gauge, Pressure Regulator, Moisture Filter, PU Tube (2 Meters) and Air filter with moisture absorbent catalyst .

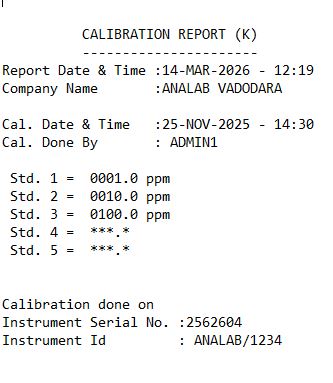

• Calibration Data Storage : Non-Volatile Memory which can store, print & view report date & time, company name, calibration date & time, calibration done by, standards results, calibration done on, instrument serial number, instrument ID etc.

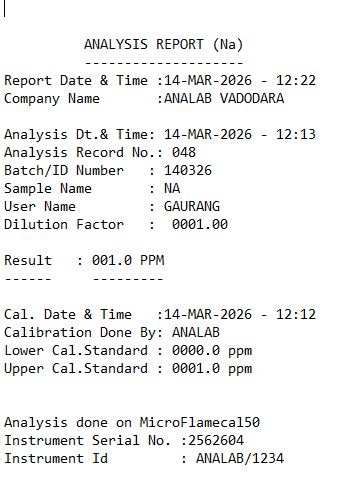

• Analysis Data Storage : More than 750 analysis data can be stored with corresponding calibration data, analysis date & time, record number, Batch number / ID, sample name, username, assigned method number, Corresponding Calibration data of lower & higher standard, Sample Result, Dilution factor, Sample Weight, Calculation of Concentration, instrument ID, serial number, model number, make, etc. Secondly, analysis data can be print online without saving in Instrument.
• Searching of data : With record number, batch number, date, date range and by scrolling.
• Report Formation : As per GLP Compliance
• Password Protection : Date & time, calibration mode & delete stored analysis data.
• Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
• Printer : 40 / 80 Column Dot Matrix Printer (Printer to be procure optionally)
• Power Supply : 230 VAC ± 10%, 50 Hz
