Tap Density Test Apparatus

Model : µTDCal50 | Make : ANALAB | HSN Code : 90318000

Supplied with Holder for 100 ml & 250 ml Cylinder, 100 ml & 250 ml Cylinder, Power Cord, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.

Technical Specifications

• No. of Station : Two
• USP Compliance :
  1) USP1 (300 taps per min.)
  2) USP2 (250 taps per min.)
  3) USP3 (55 taps per min.) – Available Optionally
• Stroke Height : 14mm ±2mm / 3mm ±0.2 mm
• Stroke / Minute : 300 ±10, 250 ±10, 55 ±5
• No. of taps : 1-9999
• Rotating and tapping motion : Simultaneous
• Display of Strokes/min : Simultaneously - Set & Actual
• Cylinder Supports : 100ml and 250 ml
• Pharmacopeia Complies : As per USP, IP, Ph. Eur.

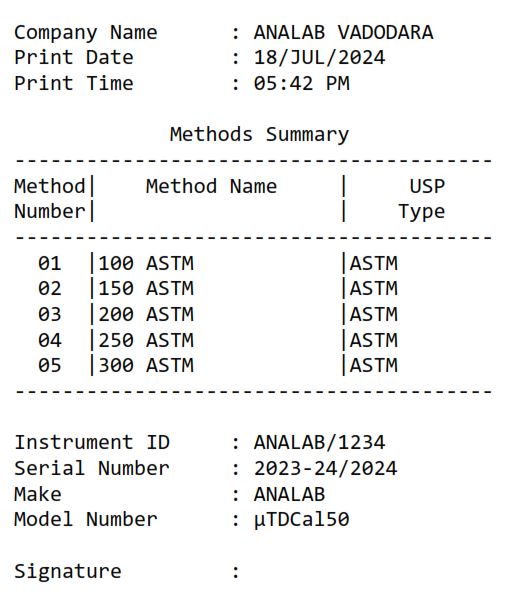

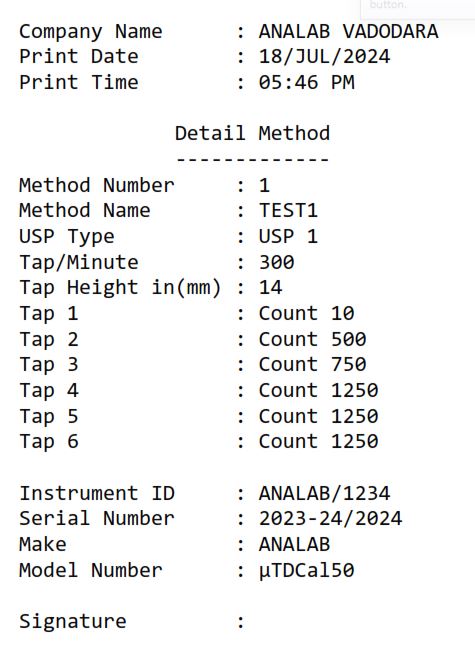

• Method : 41 analysis method with View, Print & Delete facility.
• Calculation of result : Bulk Density, Tapped density, Compressibility index and Haunser ratio
• Display : 20 x 4 Line Alphanumeric Backlit LCD
• Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS

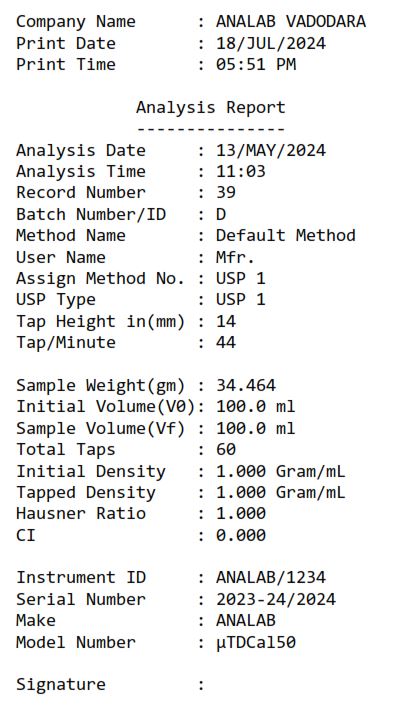

• Analysis Data Storage : More than 750 data can be store in non-Volatile Memory which can print & view analysis data with Batch No., username, sample name, Bath Number/ID Tap/minute, Tap Hight, Tap Count 1, Tap Count 2, Tap Count 3, Tap Count Final, Weight of Sample, Total Number of taps, Initial Volume(Vo), Final Volume (Vf), Tap Density, Bulk Density, Compressibility Index, & Hausner Ratio, instrument serial number, Instrument Make & Model & Signature etc. Secondly, analysis data can be print online without saving analysis data in Instrument.
• Searching of data : With record number, batch number, date, date range and by scrolling.
• Report Formation : As per GLP Compliance
• Password Protection : Delete Stored Method, Delete Stored Analysis Data, Date & Time.
• Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
• Printer : 40 / 80 Column Dot Matrix Printer (Printer to be procure optionally)
• Power Supply : 230VAC ± 10%, 50 Hz
