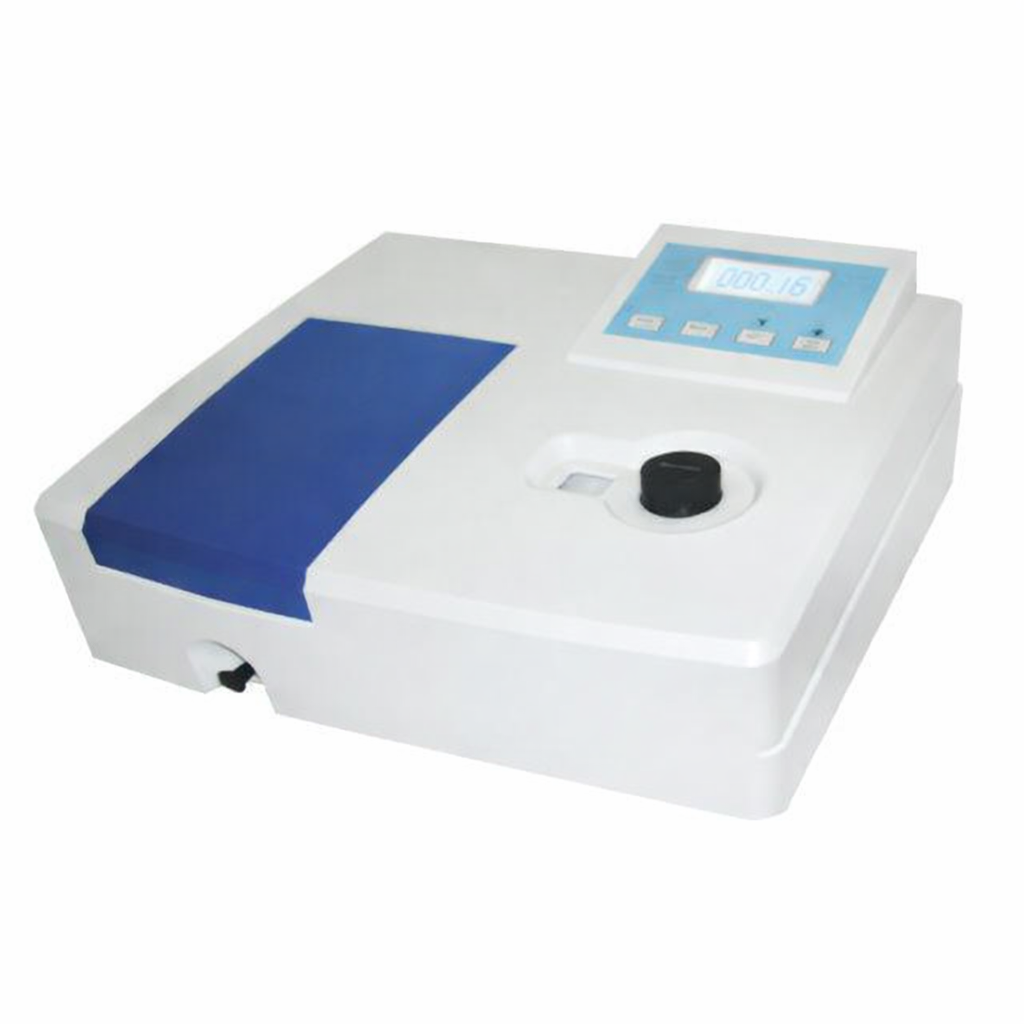

Visible Spectrophotometer (Single Beam)

Model : AV-325 | Make : ANALAB | HSN Code : 90273020

Supplied with Basic Unit, 10 mm Sample Holder, One Pair 10 mm Glass Cuvetts, Power Cable, Operation & Instruction Manual and Warranty Card.

Features:
  • The monochromator with a holographic flashing grating is used. It has the advantage of high wavelength precision, good monochromaticity and low stray light.
  • A sample compartment for 0.5cm - 10cm cells.
  • Computer control system, precise automatic T/A changeover.
  • Automatic zero and full scale adjustment.
  • Direct concentration read-out and concentration factor setting function.
  • Equipped with RS232 Port. Data can be sent to PC special software.

Technical Specification

  • Wavelength Range : 325-1000nm
  • Wavelength Accuracy : <2nm
  • Wavelength Repeatability : <1nm
  • Transmittance Accuracy : ±0.5%
  • Transmittance Repeatability : <0.2%
  • Spectrum Bandwidth : 2 nm
  • Stray Light : <0.5% (at 360nm, NaNO2 )
  • Light Current Drift : 0.5% / 3 min
  • Dark Current Drift : 0.2% / 3 min
  • Cell Holder : 10 nm
  • Dimensions : 56x48x29cms
  • Net Weight : 11.5 Kgs
  • Gross Weight : 13.5 Kgs
